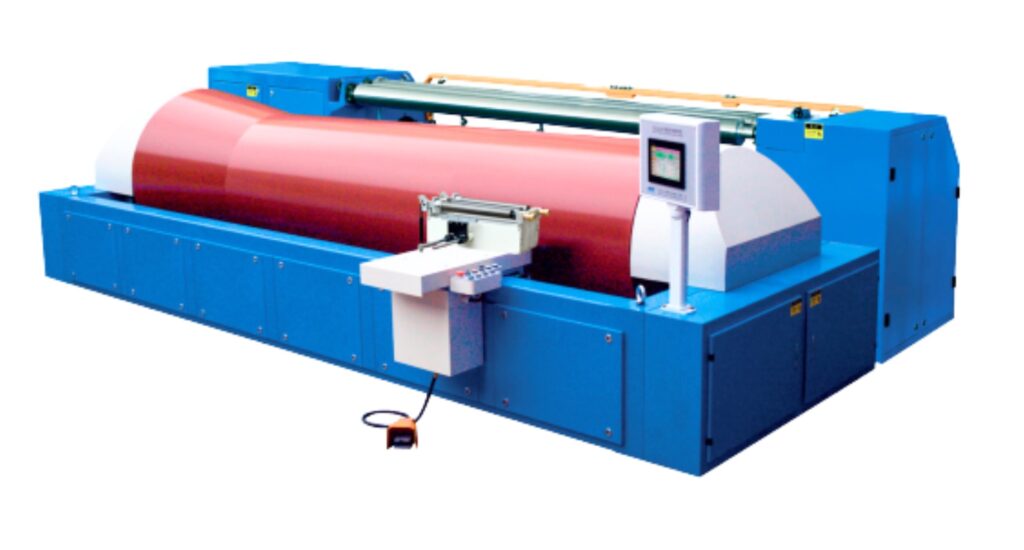

Double servo motors, double linear guide rails, double yarn guide rollers, ball screws and other structures are adopted to form the precise control of the warping. Equipped with new type of high-efficiency durable reducer and reinforced support slider on beaming part, meets the high-precision and ultra-high-speed sectional warping of various staple fibers, chemical fibers and filaments, suitable for the maximum warping speed of 800m/min and beaming speed of 300m/min.

• Double linear guide rail, double servo drive the upper and lower screw separately
• Two AC servo motors for transmission and two AC servo motors for drive respectively
• Equally-spaced winding achieved by the longitudinal movement of warping bench with independent stepping motor and transmission of ball screw
• Axial displacement of warping bench controlled by high-precision servo motor, automatic yarn/start alignment with just one touch
• Advanced computer and PLC providing functions such as break memory and automatic stop at the total length setting
